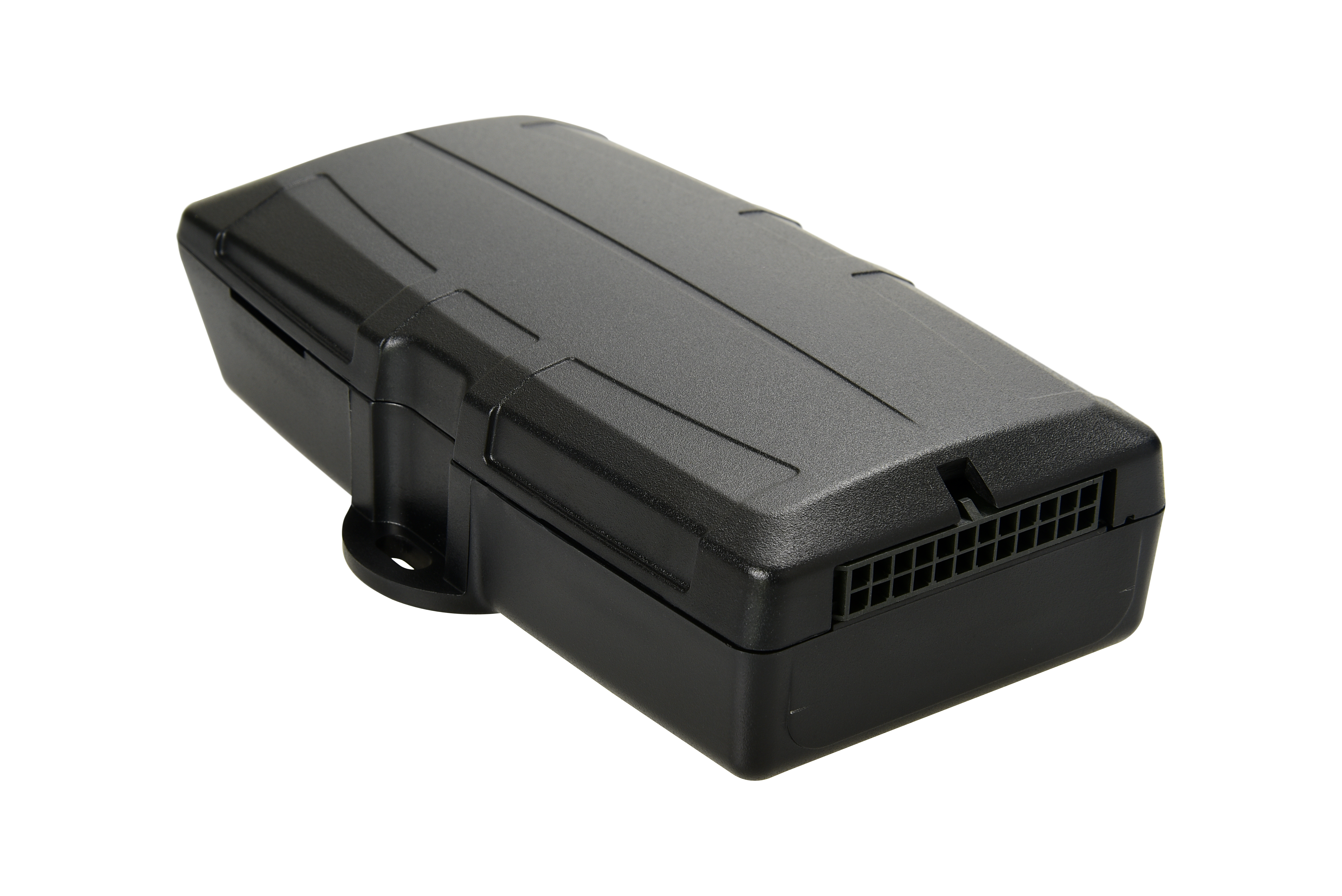

Dual Tracker

3G with Iridium Flexicard and antenna



The Dual Mode Tracker is a highly capable GPS/GLONASS cellular tracker with a variety of inputs and outputs.

The Flexi-Card slot sets it apart, providing endless integration and expansion possibilities

FEATURES

  • 24/7 Vehicle location
  • Cellular data when in coverage
  • ridium satellite out of cell coverage
  • Man Down Pendant (option)
  • Iridium, Wi-Fi, RF (Flexi-Card options)
  • Ignition + 4 Inputs and 2 Outputs
  • Driver ID: RFID and iButton
  • PLC interfaces: RS232 and RS485
  • 3D Accelerometer
  • Internal Back-up Battery



BUY NOW



Deal Includes


The Dual Tracker is a highly capable GPS/GLONASS cellular tracker with a variety of inputs and outputs. The Flexi-Card slot sets it apart, providing endless integration and expansion possibilities

FEATURES

  • 24/7 Vehicle location
  • Cellular data when in coverage
  • Iridium satellite out of cell coverage
  • Man Down Pendant (option)
  • Iridium, Wi-Fi, RF (Flexi-Card options)
  • Ignition + 4 Inputs and 2 Outputs
  • Driver ID: RFID and iButton
  • PLC interfaces: RS232 and RS485
  • 3D Accelerometer
  • Internal Back-up Battery

SPECS


3G with Iridium Flexicard and antenna Specs

MECHANICAL FEATURES
temperature -20°C to +60°C
Dimensions (mm) L 125 x W 65 x H 30
Weight 250 grams including battery
Automotive Power 8-45V DC

CONNECTIVITY
Cellular - 2G/3G (Various Global Bands)
SIM - SIM holder for standard Cellular SIM card (2FF size)
GPS and Cellular Antenna - Internal antennas tuned by RF laboratories to ensure optimal performance

SPECIFICATIONS
Recovery Mode Switch from Daily Locate to Live Tracking overthe-air
Auto-APN Analyse SIM and detect APN from pre-loaded list
3D Accelerometer 3 axis accelerometer intelligently reports on harsh
driving and suspected accident events, as well as harsh braking, acceleration and cornering
G-Force Events - Accident and Rollover, Accident Data (Black Box), Harsh Acceleration, Braking and Cornering
Driver ID - Driver Identification with RFID or iButton (Keyfobs), Driver Lists on device
Inputs and Outputs - 5 x Digital Inputs configurable over-the-air, 2 x Switched Ground Digital Outputs
Interfaces - iButton, RS232, DMCAN, 5V Out

GPS TRACKING
GPS Module - U-Blox Max8 GPS, High sensitivity assisted GPS receiver, 72 channel (-167dBm)
AssistNow Offline - Predicts satellite locations, Reduces the time to first fix, Improves performance in "urban canyons"
Antenna with LNA - Boosted by low-noise amplifier (LNA) allows operation in "urban canyons"

FLEXI-CARD SLOT
Iridium Satellite - Auto-switch cellular/iridium, When out of GSM coverage, important data reported via Iridium
Wi-Fi, RF Gateway, RS485, PT100, I2C, 2 x Analogue
Flexi-Card IO - 6 external wires connected to the Flexi-Card

  • Dimensions: 170mm(L) x 54mm(W) x 39mm(D) Weight: 279g (9.8oz) Including Battery Display:
  • High visibility colour screen InterfacesMicro
  • USB Audio Socket Antenna Port
  • Bluetooth 2.0
  • Water & Dust Ingress Protection
  • IP54 Operating Range: 20ºC to +55ºC (-4ºF to +131ºF)
  •  Storage Range: 20ºC to +70ºC (-4ºF to +158ºF) (with battery)
  • Charging Range: 0ºC to 45ºC (32ºF to 113ºF)
  • Humidity tolerance: 0 to 95 per cent
  • BatteryType - Lithium-ion, 3.7 volts
  • Talk Time - Up to 8 hours
  • Standby Time - Up to 100 hours
  • Services Satellite - 2.4kbps voice codec
  • Telephony - Speakerphone option Voicemail - Speed dial 1 Supplementary voice services
  • Call history Caller ID
  • Call waiting
  • Call divert
  • Call holding
  • Conferencing Call barring Speed dialing
  • Fixed number dialing
  • Text-to-text
  • 160 Latin / ~74 non-Latin characters Up to 10 concatenations Standard and predictive
  • Dimensions: 170mm(L) x 54mm(W) x 39mm(D) Weight: 279g (9.8oz) Including Battery Display:
  • High visibility colour screen InterfacesMicro
  • USB Audio Socket Antenna Port
  • Bluetooth 2.0
  • Water & Dust Ingress Protection
  • IP54 Operating Range: 20ºC to +55ºC (-4ºF to +131ºF)
  •  Storage Range: 20ºC to +70ºC (-4ºF to +158ºF) (with battery)
  • Charging Range: 0ºC to 45ºC (32ºF to 113ºF)
  • Humidity tolerance: 0 to 95 per cent
  • BatteryType - Lithium-ion, 3.7 volts
  • Talk Time - Up to 8 hours
  • Standby Time - Up to 100 hours
  • Services Satellite - 2.4kbps voice codec
  • Telephony - Speakerphone option Voicemail - Speed dial 1 Supplementary voice services
  • Call history Caller ID
  • Call waiting
  • Call divert
  • Call holding
  • Conferencing Call barring Speed dialing
  • Fixed number dialing
  • Text-to-text
  • 160 Latin / ~74 non-Latin characters Up to 10 concatenations Standard and predictive
